MEDORRA Continuous Flow Oxygen Concentrator – 5L & 10L Models
MEDORRA Continuous Flow Oxygen Concentrator – 5L & 10L Models
MEDORRA continuous-flow oxygen concentrators use PSA molecular sieve technology to concentrate oxygen from room air. Compare the 5L and 10L models, and select only the model and flow setting prescribed by your licensed healthcare professional.
Prescription required. For prescribed supplemental oxygen therapy. Not intended for life-support or life-sustaining use.

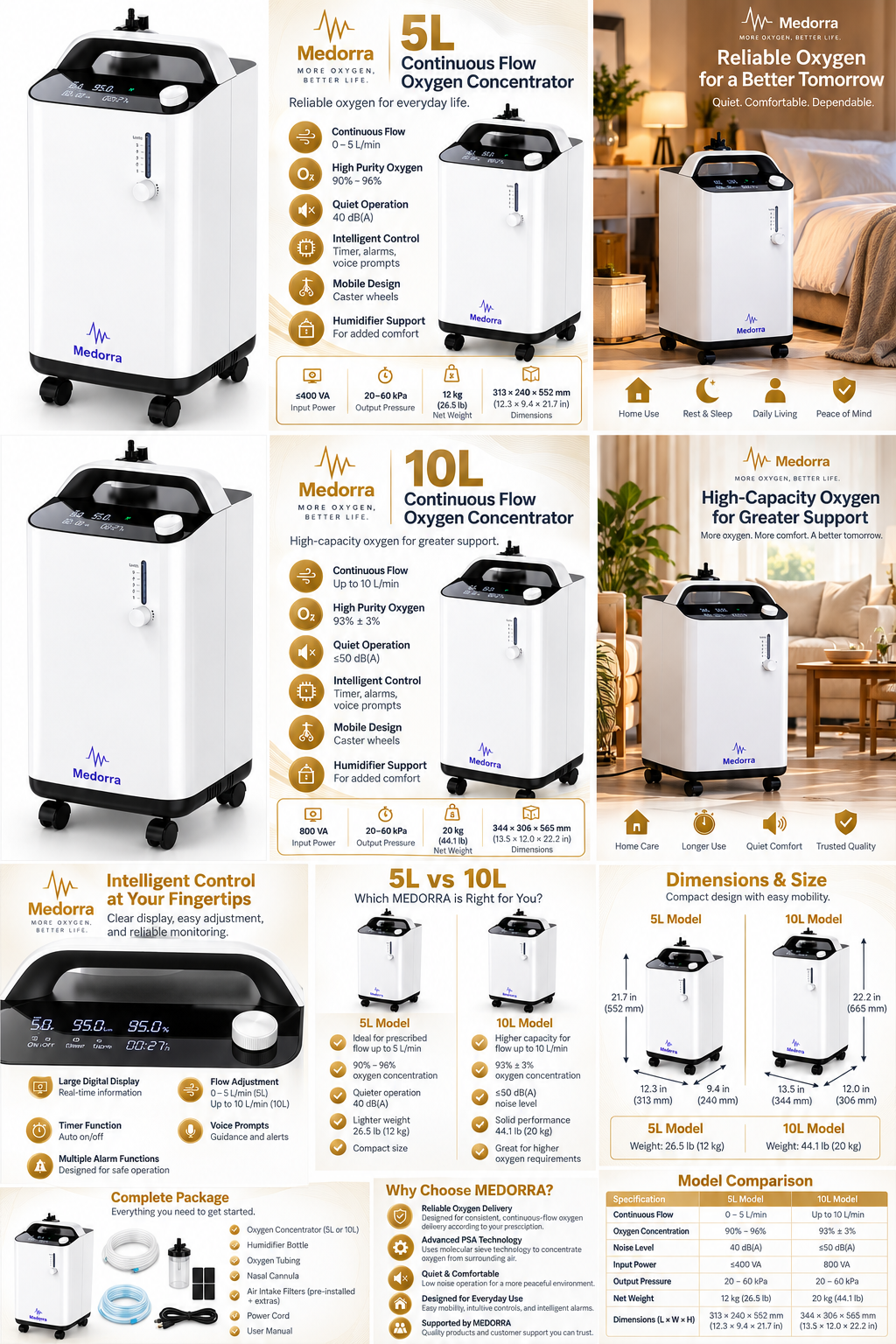

Compare the models

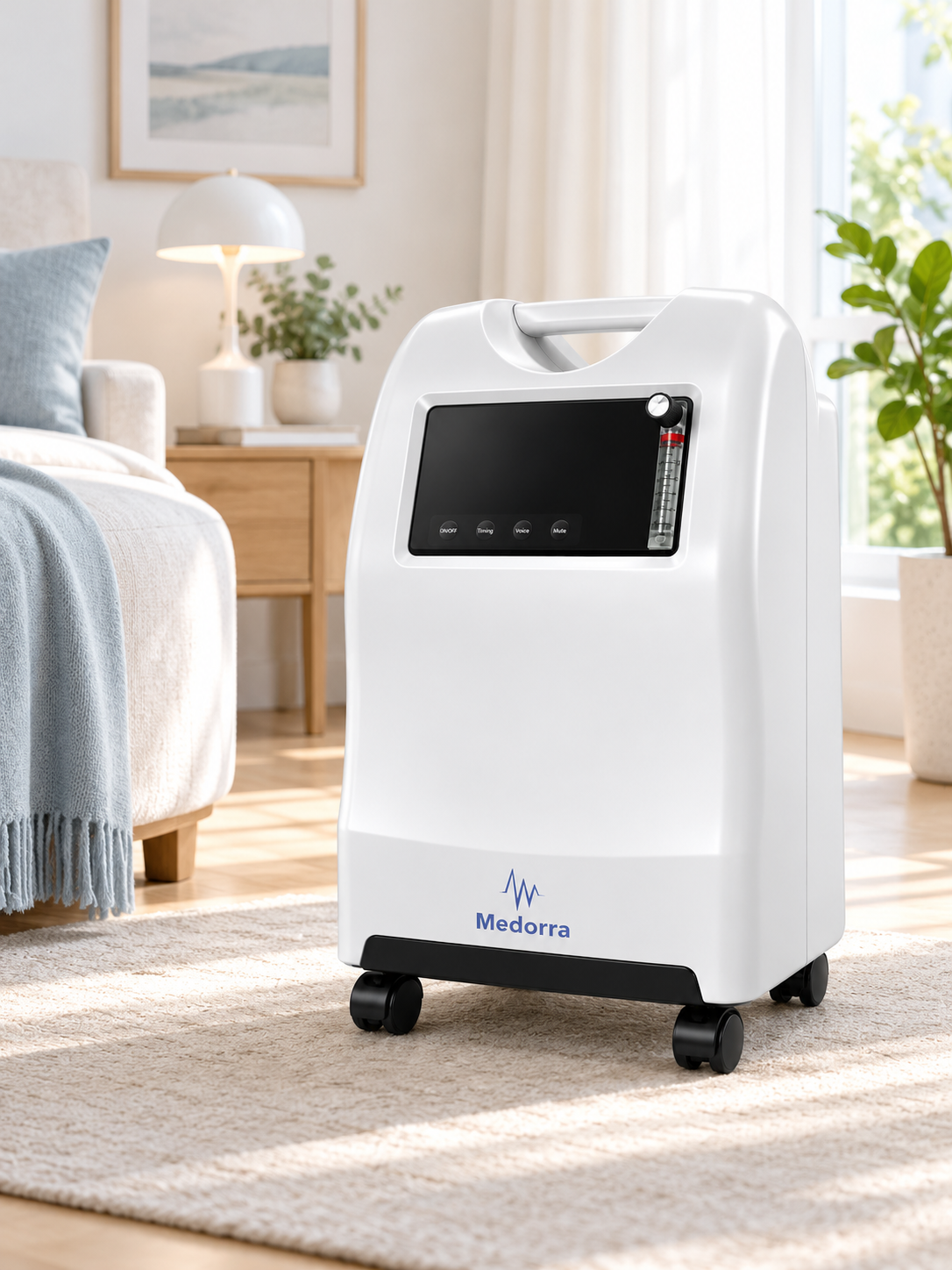

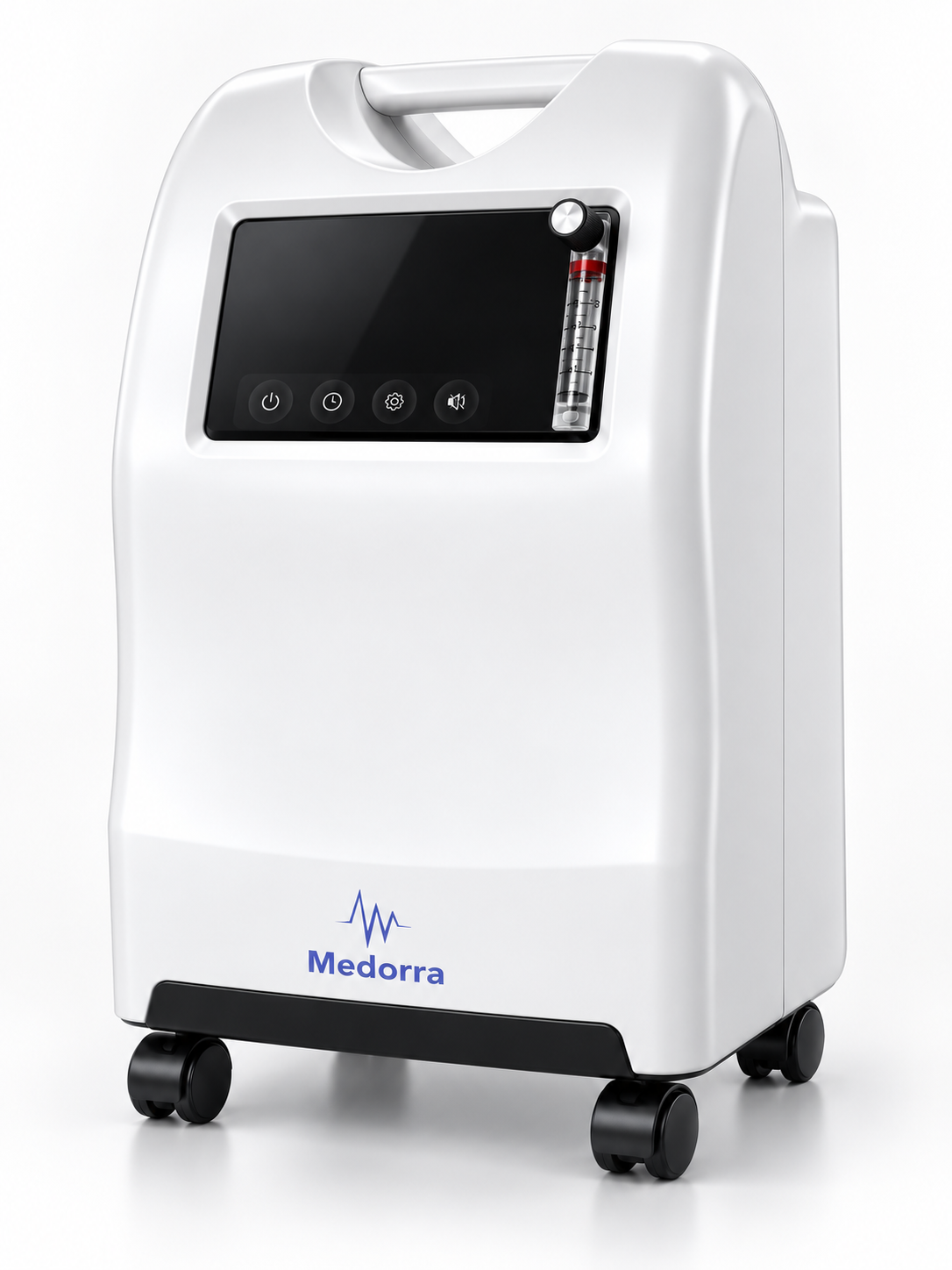

5L Continuous Flow
Adjustable 0–5 L/min flow in a 12 kg / 26.5 lb unit.
Model SKU: MED5LOXYCON

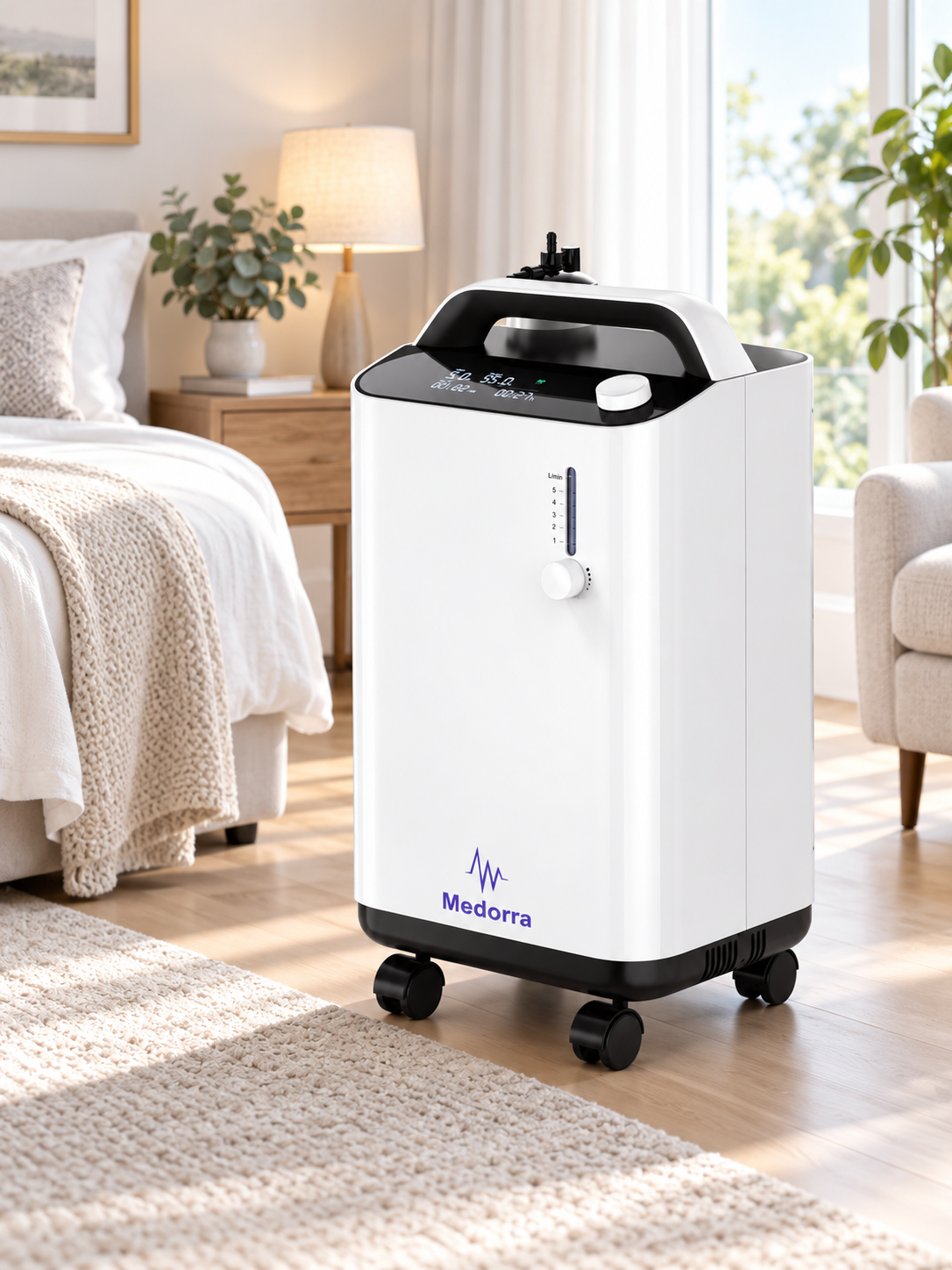

10L Continuous Flow
Up to 10 L/min recommended flow in a 20 kg / 44.1 lb unit.
Model SKU: MED10OXYCON
Choose according to your prescription. A higher flow capacity does not mean a different flow setting is appropriate for you.

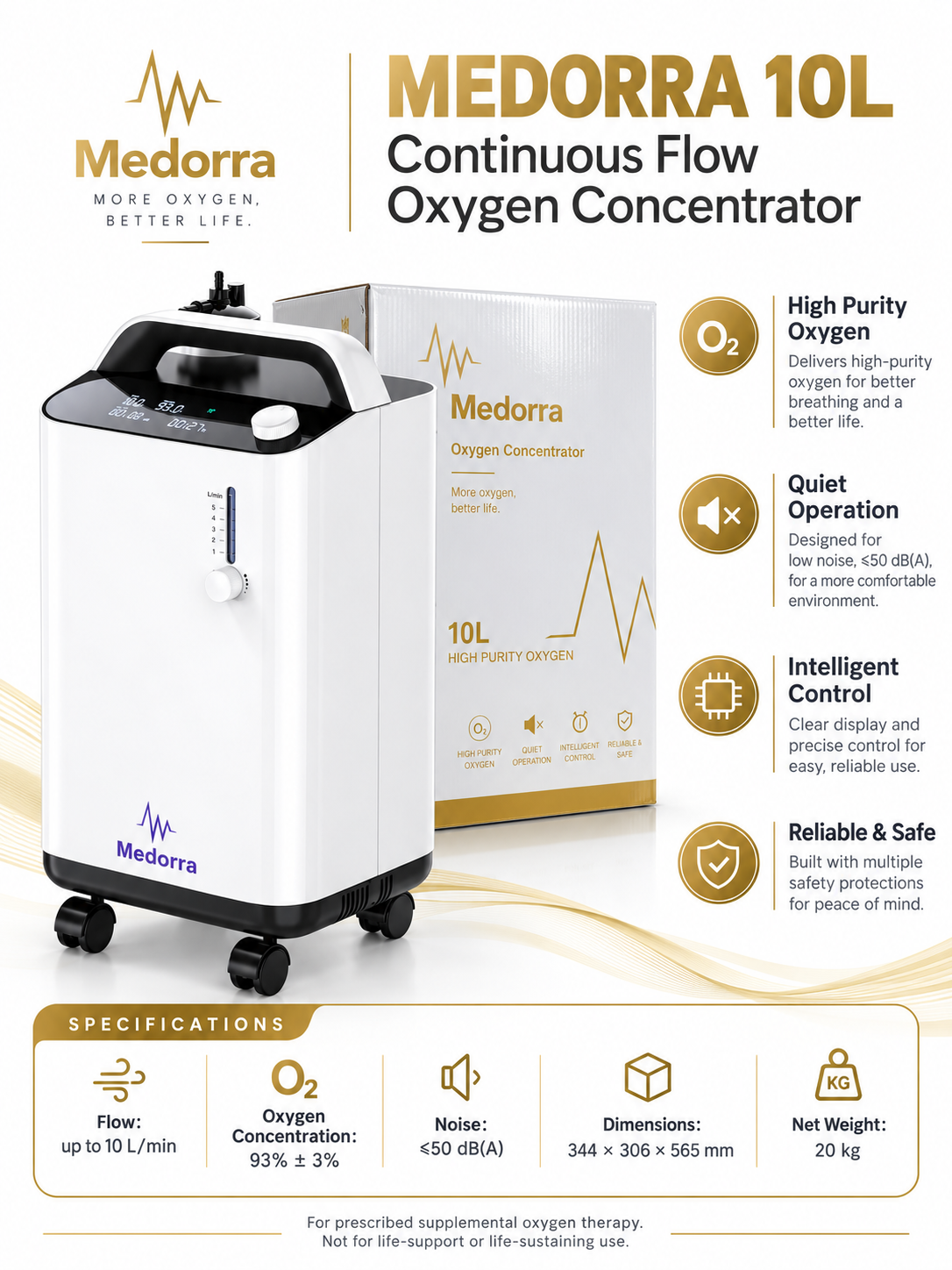

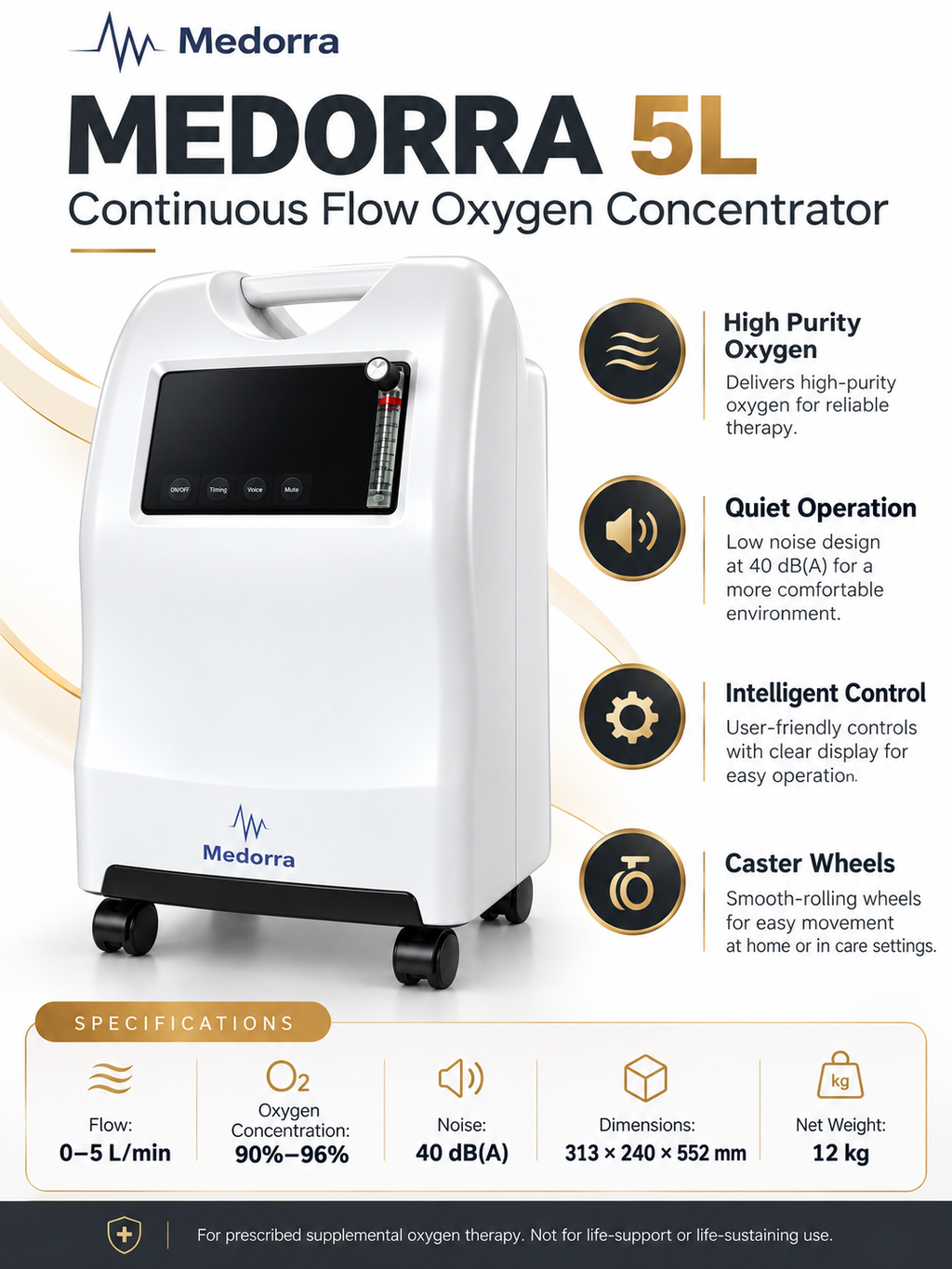

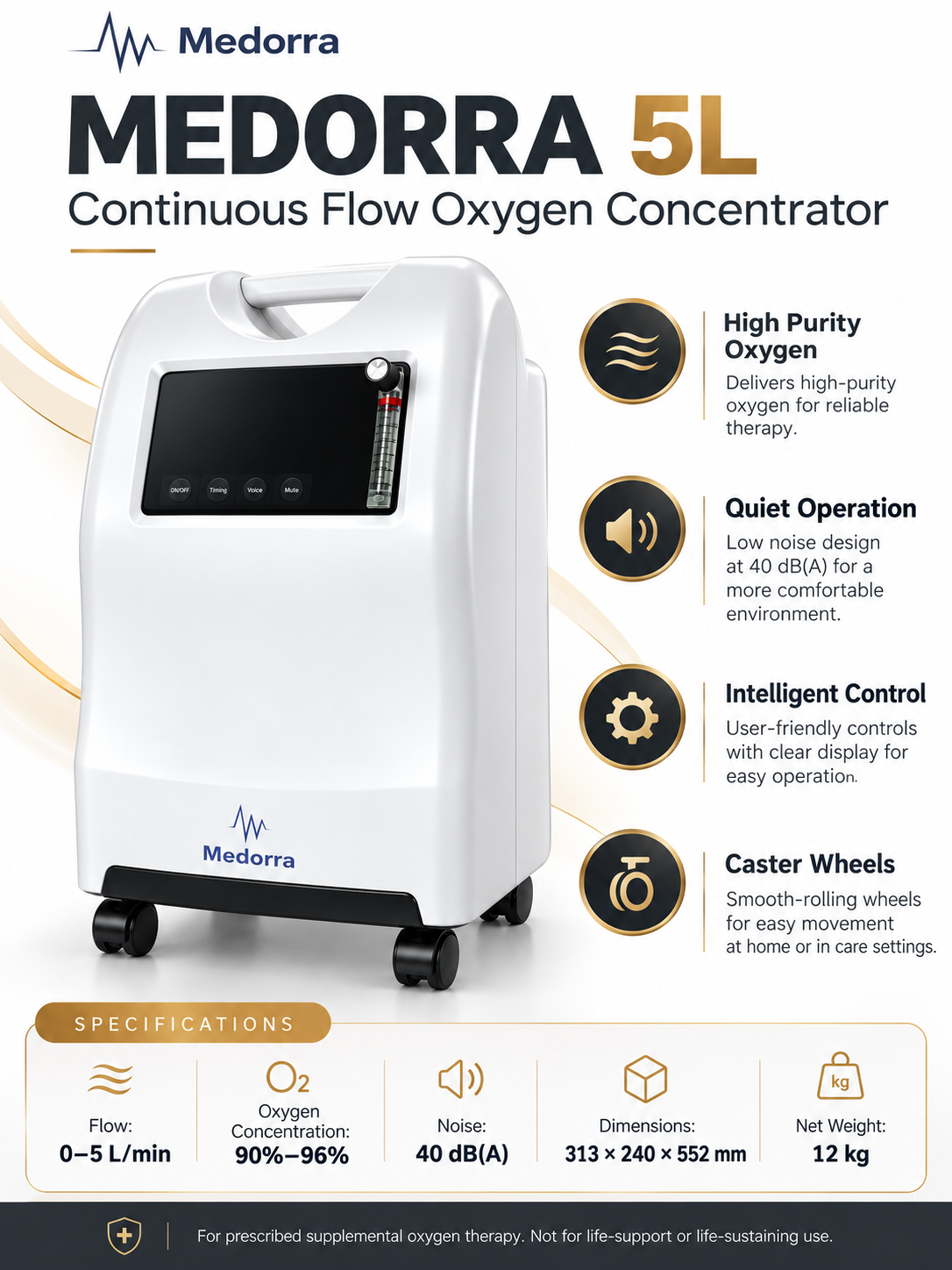

Model specifications
| Specification | 5L model | 10L model |
|---|---|---|
| Continuous flow | 0–5 L/min | Up to 10 L/min |
| Oxygen concentration | 90–96% | 93% ± 3% |
| Published sound level | 40 dB(A) | ≤50 dB(A) |
| Input power | ≤400 VA | 800 VA |
| Output pressure | 20–60 kPa | 20–60 kPa |
| Net weight | 12 kg / 26.5 lb | 20 kg / 44.1 lb |
| Dimensions | 313 × 240 × 552 mm | 344 × 306 × 565 mm |
Confirm the final device configuration, electrical rating and supplied accessories with Medorra before ordering. Performance depends on operating conditions and the prescribed flow setting. Use only the voltage stated on the device rating label.
Controls and everyday handling
- Continuous-flow delivery with a visible flow meter and adjustment control.
- Operating-time display, timer and alarm functions described in the model-specific manual.
- Integrated handle and caster wheels for repositioning the unit.
- Humidifier support for compatible humidification accessories.
- Configuration-dependent features: confirm voice prompts, nebulizer functionality and specific alarm features for the exact unit supplied.
Care and replacement filters
Keep all required filters installed and follow the maintenance schedule in the correct model manual. Switch the unit off and unplug it before cleaning or maintenance. Internal service should be performed by qualified personnel.
Replacement filter six-packs are separate products. Match the concentrator model and the exact filter component before ordering; do not assume 5L and 10L filters are interchangeable. View replacement filter information.
Important oxygen safety
Use only as directed by a licensed healthcare professional. This device is not intended for life-support or life-sustaining use. Oxygen supports combustion; keep smoking, flames, sparks, oils and grease away from the concentrator and oxygen accessories.
Maintain an appropriate backup oxygen supply when interruption of therapy could create a health risk. Read the complete safety instructions before use.
Manuals and product support
Questions about a model, configuration, replacement part or ordering requirements? Contact Medorra or email info@medorra.com.
